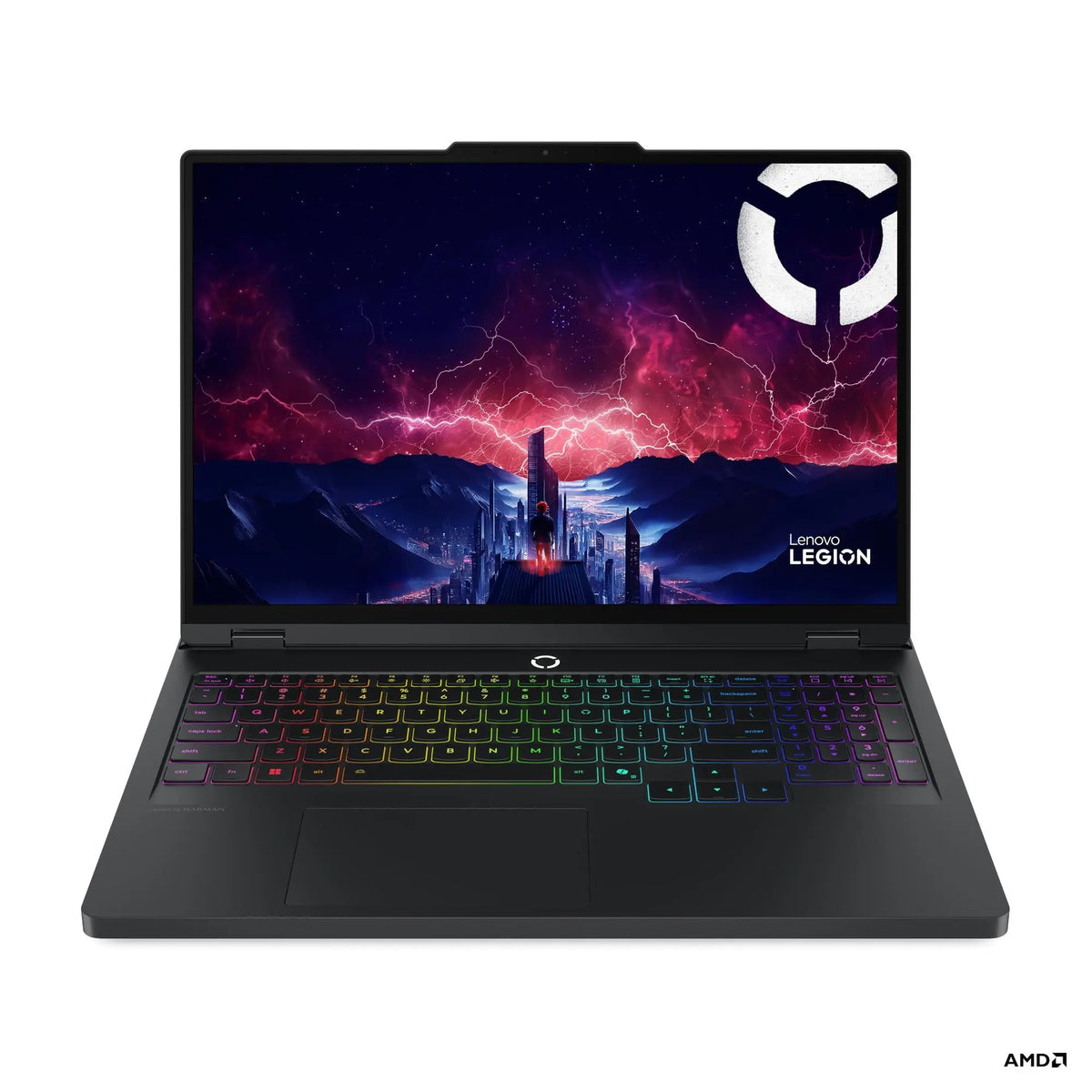

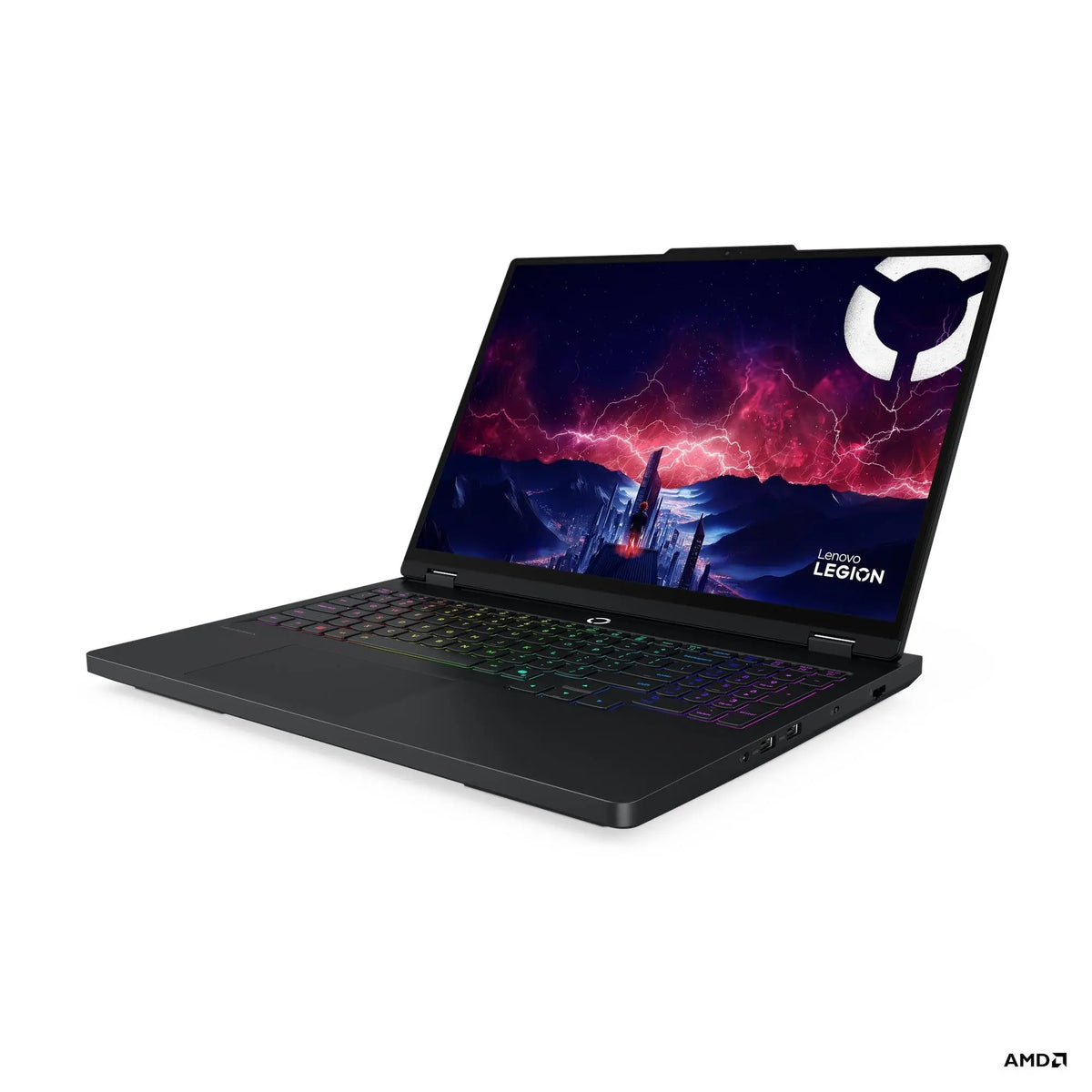

LENOVO Legion Pro 5 16ADR10 Gaming Laptop - AMD Ryzen 7 8745HX, 24GB DDR5, 1TB SSD, NVIDIA RTX 5060 8GB, 16-inch WQXGA OLED 165Hz, Win11

The LENOVO Legion Pro 5 16ADR10 pairs an AMD Ryzen 7 8745HX with a 115W NVIDIA GeForce RTX 5060 8GB and a 16-inch WQXGA OLED 165Hz display, backed by 24GB DDR5 and a 1TB SSD.

At the centre of the LENOVO Legion Pro 5 16ADR10 is the AMD Ryzen 7 8745HX, an 8-core, 16-thread processor that runs at a 3.6GHz base and reaches 5.1GHz, with 8MB of L2 and 32MB of L3 cache behind it. Graphics come from the NVIDIA GeForce RTX 5060 Laptop GPU with 8GB of GDDR7 at a 2497MHz boost clock and a 115W total graphics power - the figure that decides how much of the card you actually get in a gaming chassis, and one of the higher settings this GPU ships at. It is rated at 572 AI TOPS and supports DLSS 4.

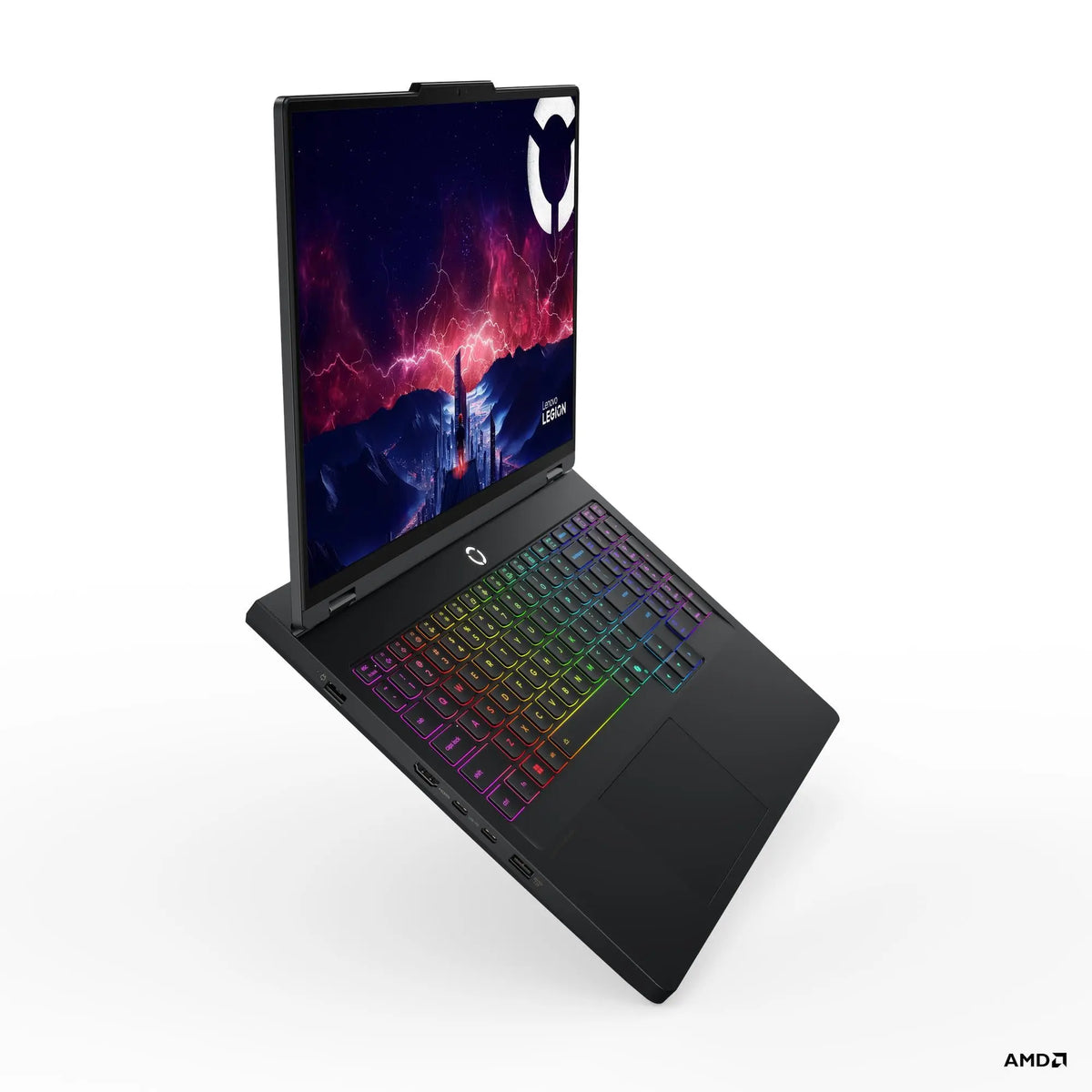

The display is a 16-inch WQXGA 2560x1600 OLED panel at 165Hz and 500 nits, covering 100% of DCI-P3 with DisplayHDR True Black 1000, Dolby Vision, NVIDIA G-SYNC and AMD FreeSync Premium. OLED is the part worth pausing on: black pixels switch off entirely rather than dimming, so contrast in dark game scenes is a different order from an IPS panel, and the 16:10 shape gives more vertical room than a 16:9 screen of the same width. The panel fills 91.7% of the lid, and carries a Low Blue Light certification for long sessions.

Memory is 24GB of DDR5-5200 in a single SODIMM, which leaves the second slot free - the machine takes up to 32GB across two slots in dual channel. Storage is a 1TB PCIe 4.0 x4 NVMe SSD, and there are two M.2 2280 slots in total, so a second drive can go in without removing the first. It ships with Windows 11 Home Single Language in English.

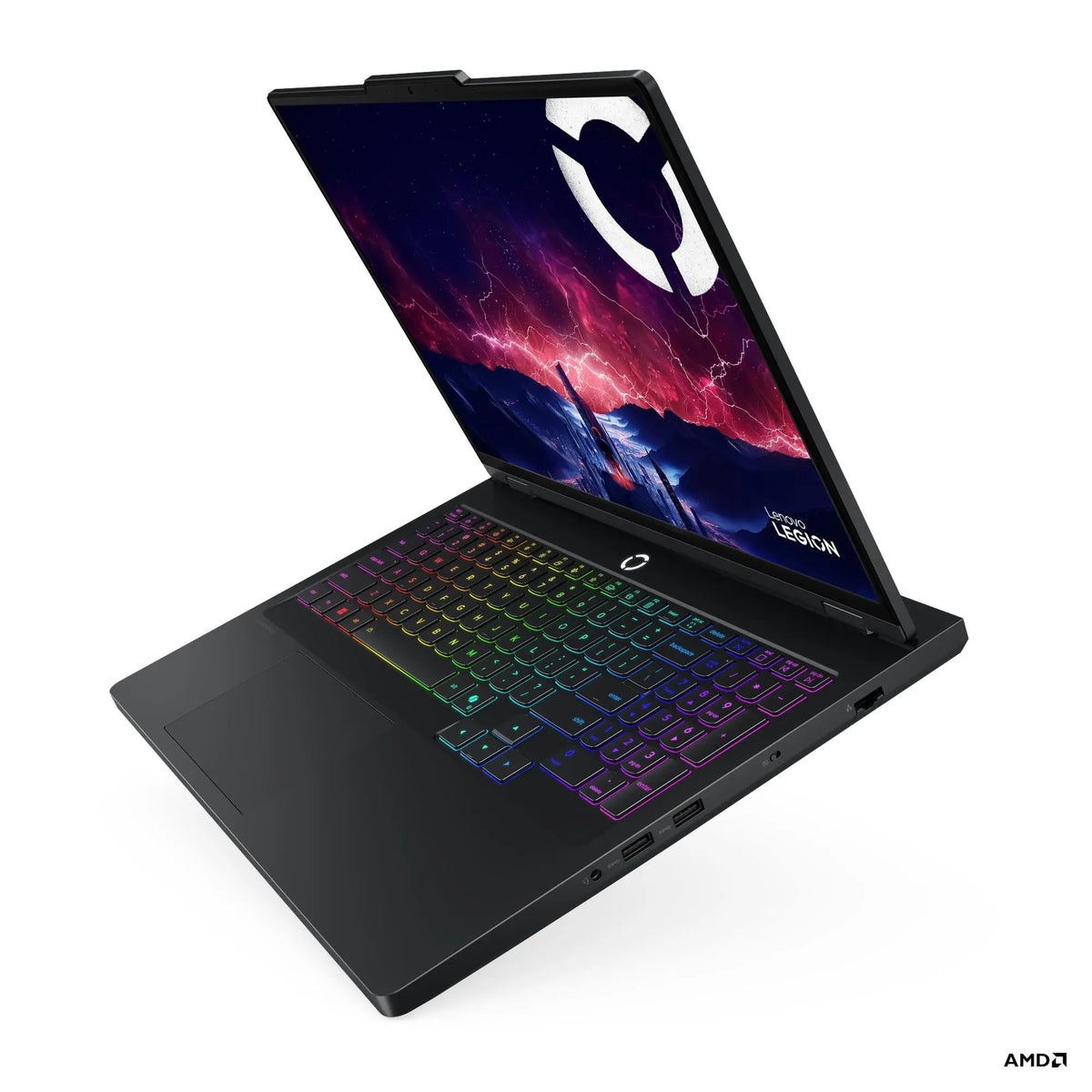

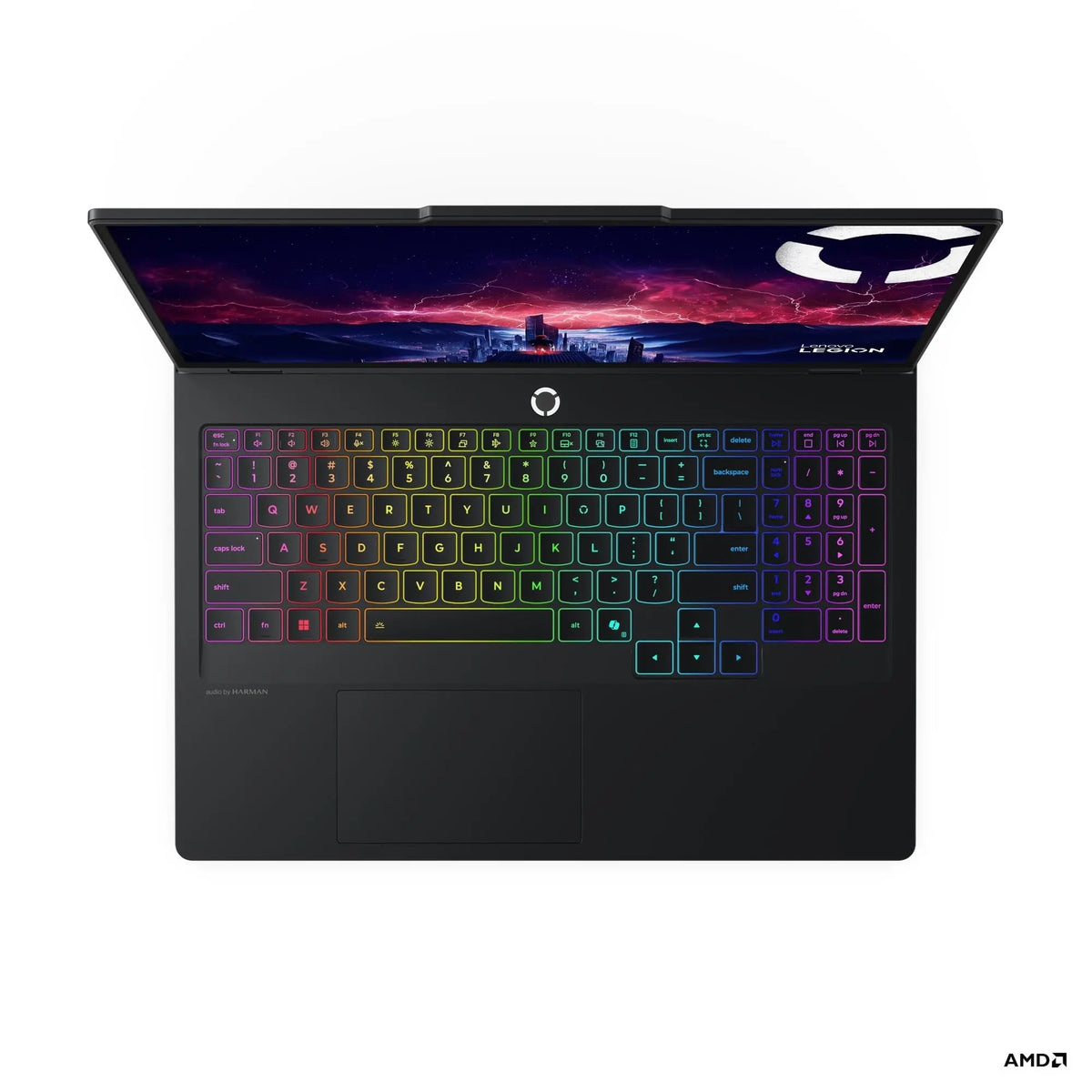

Typing is handled by a 24-zone RGB backlit keyboard with a numeric keypad, 1.6mm of key travel and a dedicated Copilot key, next to a 75x120mm buttonless precision touchpad. Sound runs through stereo 2W speakers tuned by HARMAN with Nahimic Audio and a dual-microphone array, and the 5MP camera has a physical E-shutter.

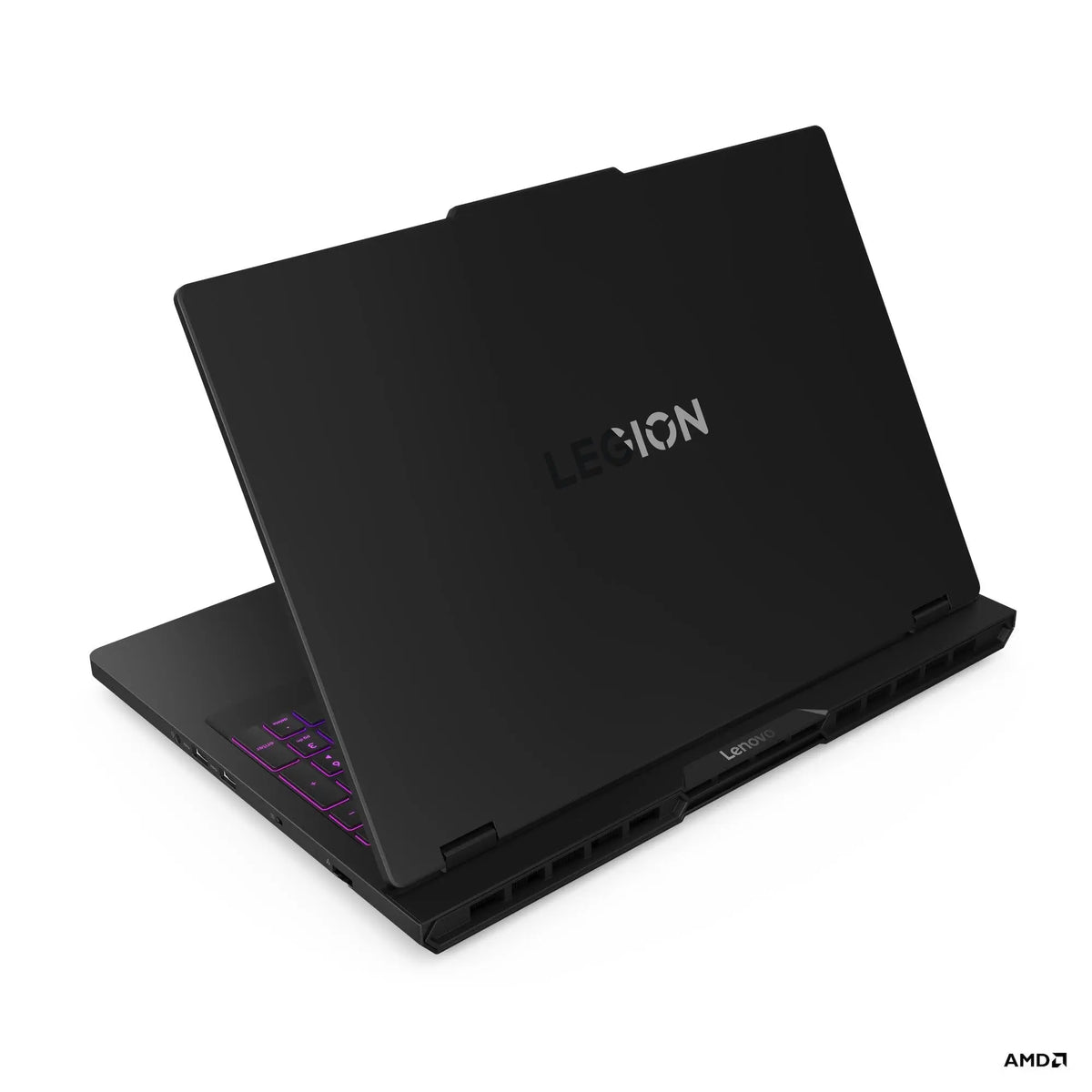

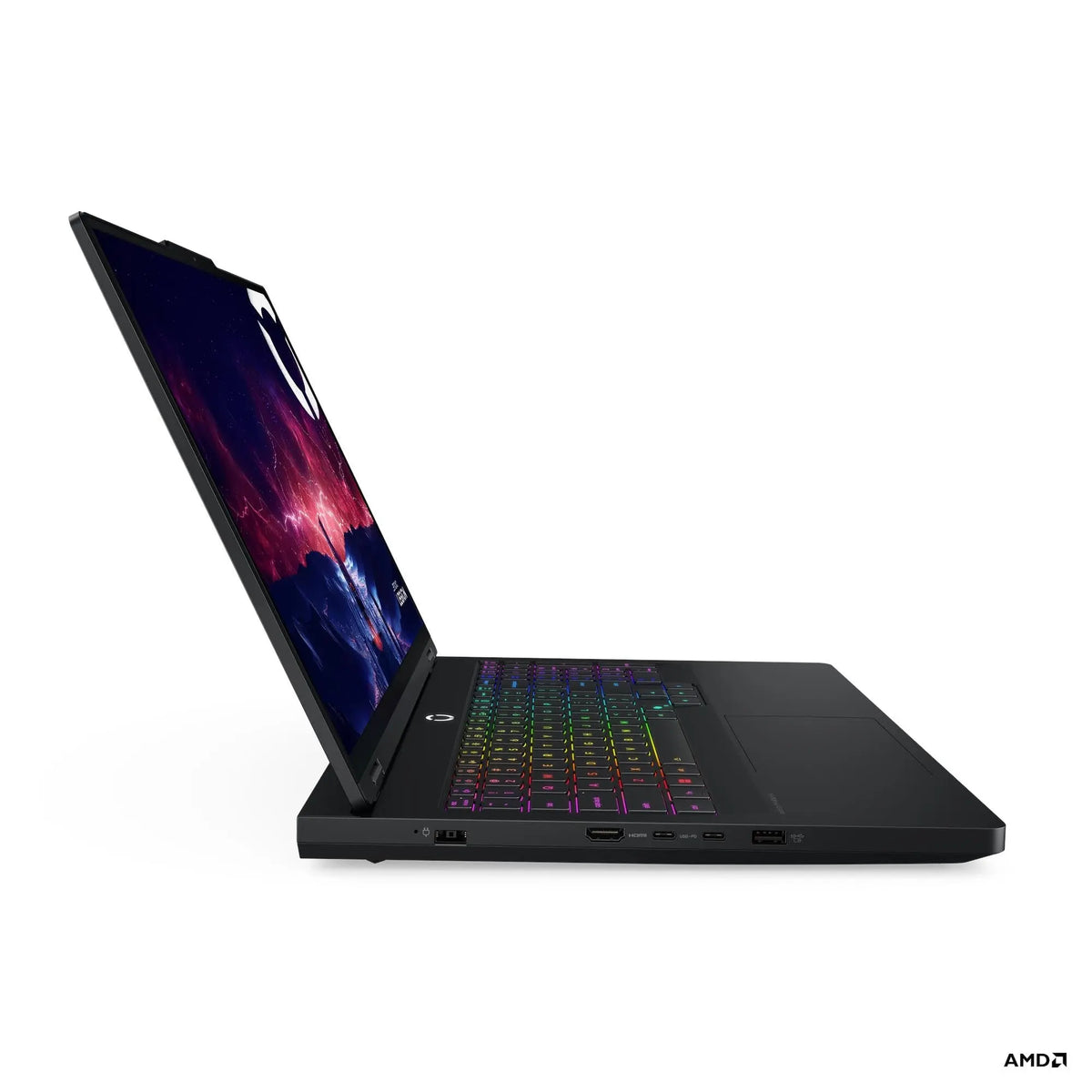

Ports are unusually complete for the class: two USB-A at 5Gbps, a third USB-A at 10Gbps with Always On charging, and two USB-C ports at 10Gbps - both carrying DisplayPort 2.1, with one of them also taking USB Power Delivery from 65W to 100W. Alongside them sit HDMI 2.1 good for 8K at 60fps, a gigabit Ethernet jack, a 3.5mm combo audio jack and a dedicated slim-tip power connector. Wireless is Wi-Fi 7 (802.11be) 2x2 with Bluetooth 5.4. Power comes from an 80Wh battery with Super Rapid Charge, which reaches 30% in ten minutes, 70% in thirty and a full charge in eighty, fed by a 245W slim-tip adapter sized for the 115W GPU. The chassis measures 364.38x268.06x21.69-25.95 mm, starts at 2.3kg with the OLED panel, and is finished in Eclipse Black with an anodised sandblasted aluminium lid over a PC-ABS base. Firmware TPM 2.0 is enabled.

LENOVO Legion Pro 5 16ADR10 Key Features:

• AMD Ryzen 7 8745HX with 8 cores and 16 threads - a 3.6GHz base rising to 5.1GHz with 32MB of L3 cache, so game logic and background work do not fight each other.
• NVIDIA GeForce RTX 5060 8GB GDDR7 at 115W - a 2497MHz boost clock and 572 AI TOPS, with DLSS 4 frame generation for higher frame rates without dropping detail.
• 16-inch WQXGA OLED at 165Hz - 2560x1600 on a 16:10 panel, 500 nits, 100% DCI-P3, DisplayHDR True Black 1000 and Dolby Vision, with blacks that switch off rather than dim.
• G-SYNC and FreeSync Premium together - variable refresh that removes tearing whether the frame rate is above or below the panel's 165Hz.
• 24GB DDR5-5200 with a free second slot - more memory than the usual 16GB starting point, and room to reach 32GB in dual channel later.
• 1TB PCIe 4.0 NVMe SSD plus a spare M.2 2280 slot - a full-size library now, and a second drive later without taking the first one out.
• Two USB-C ports with DisplayPort 2.1 - two external screens over USB-C, with 65W to 100W of USB Power Delivery on one of them for charging from a compatible supply.
• HDMI 2.1 at 8K 60fps and gigabit Ethernet - a high-refresh external monitor on one side and a wired connection that keeps latency steady when Wi-Fi is crowded.
• Wi-Fi 7 (802.11be) 2x2 with Bluetooth 5.4 - the current wireless standard, which matters most on a busy network: it uses wider channels and handles congestion better than Wi-Fi 6, and it still connects to any older router.
• 24-zone RGB backlit keyboard with numeric keypad - 1.6mm of travel for a firm press, per-zone colour, and a full number pad for work that is not gaming.
• 80Wh battery with Super Rapid Charge - 30% in ten minutes and 70% in thirty, on a 245W adapter sized so the GPU is not throttled while plugged in.
• HARMAN-tuned stereo speakers and a 5MP camera with E-shutter - Nahimic audio processing, and a mechanical cover for the lens rather than a software toggle.

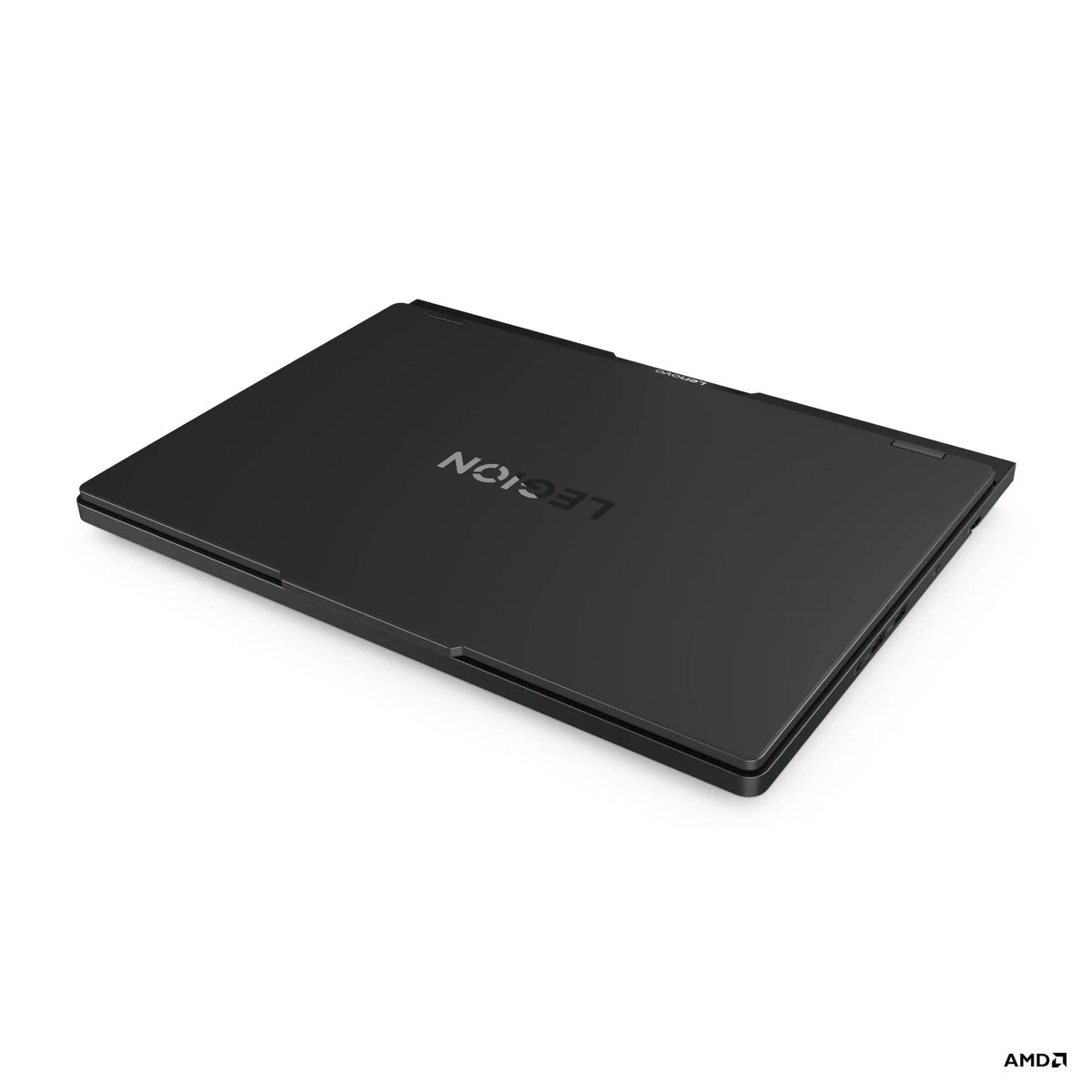

• Eclipse Black aluminium lid, from 2.3kg - an anodised sandblasted top over a PC-ABS base, with 91.7% of the lid given to screen.
